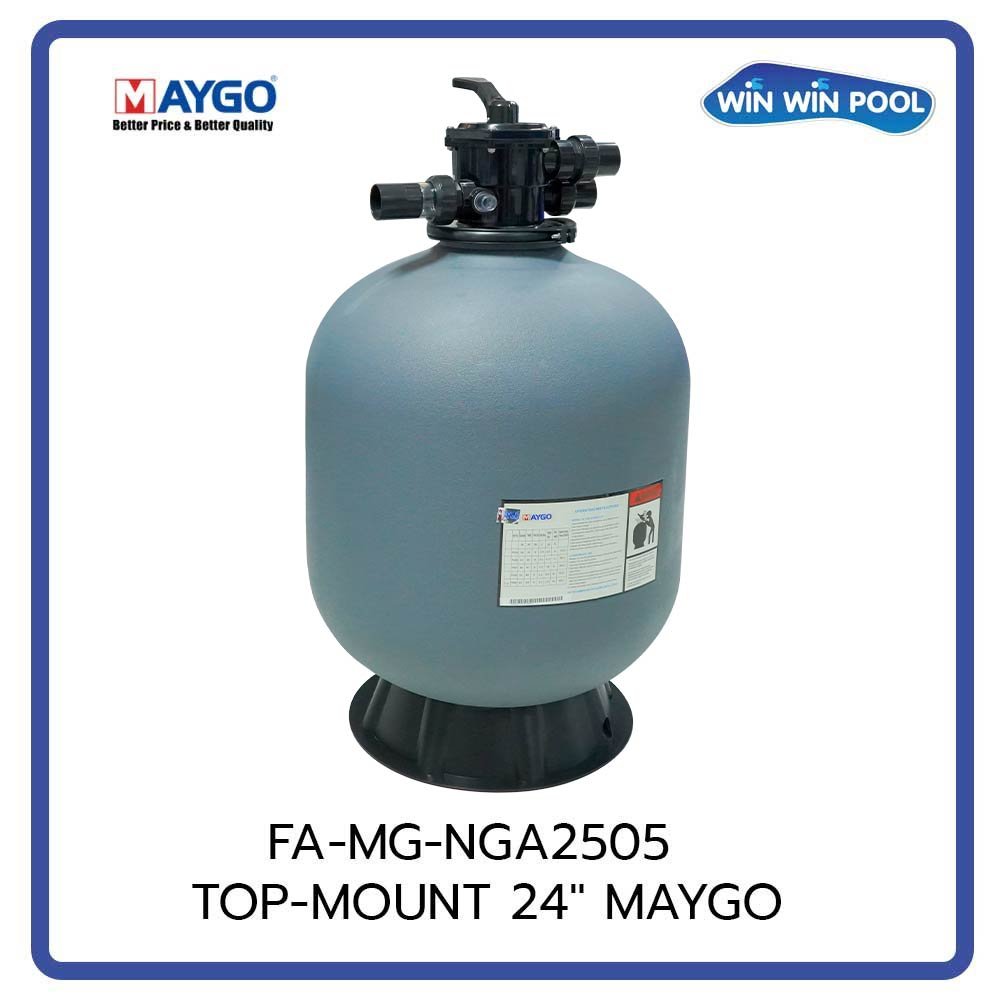

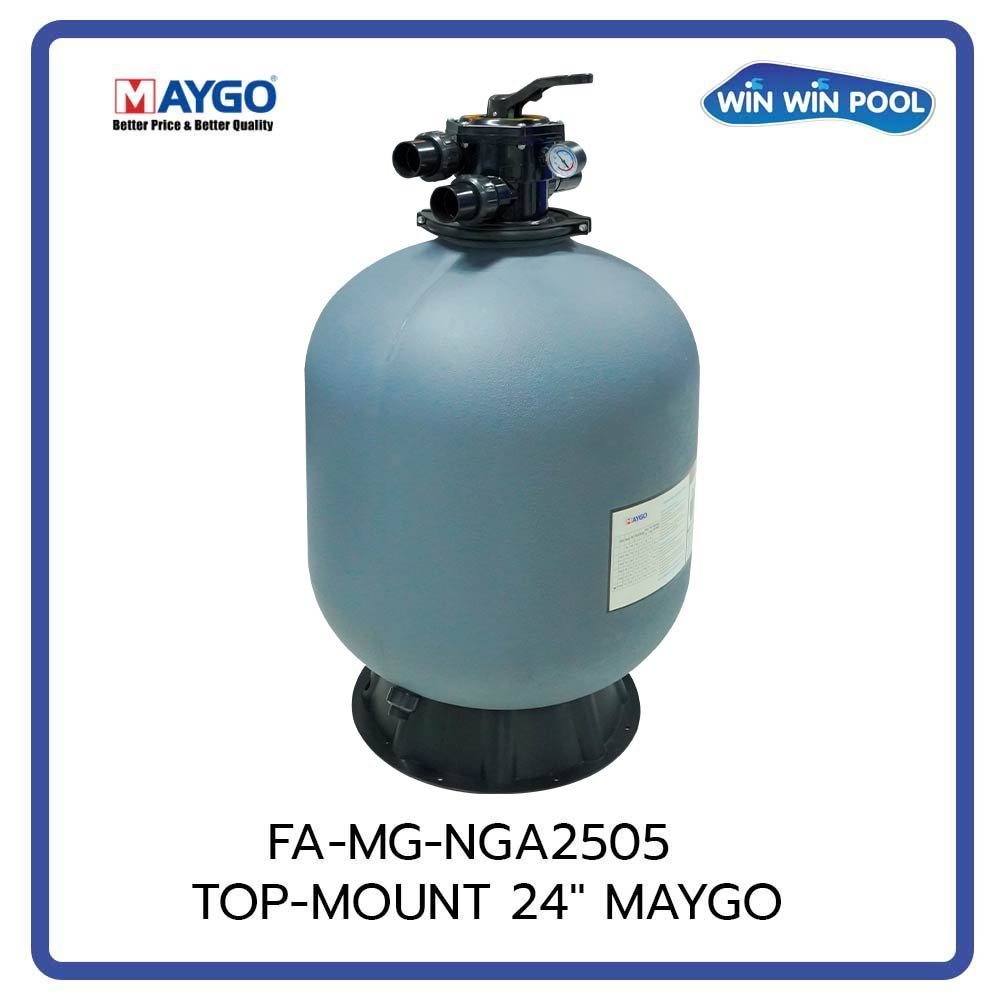

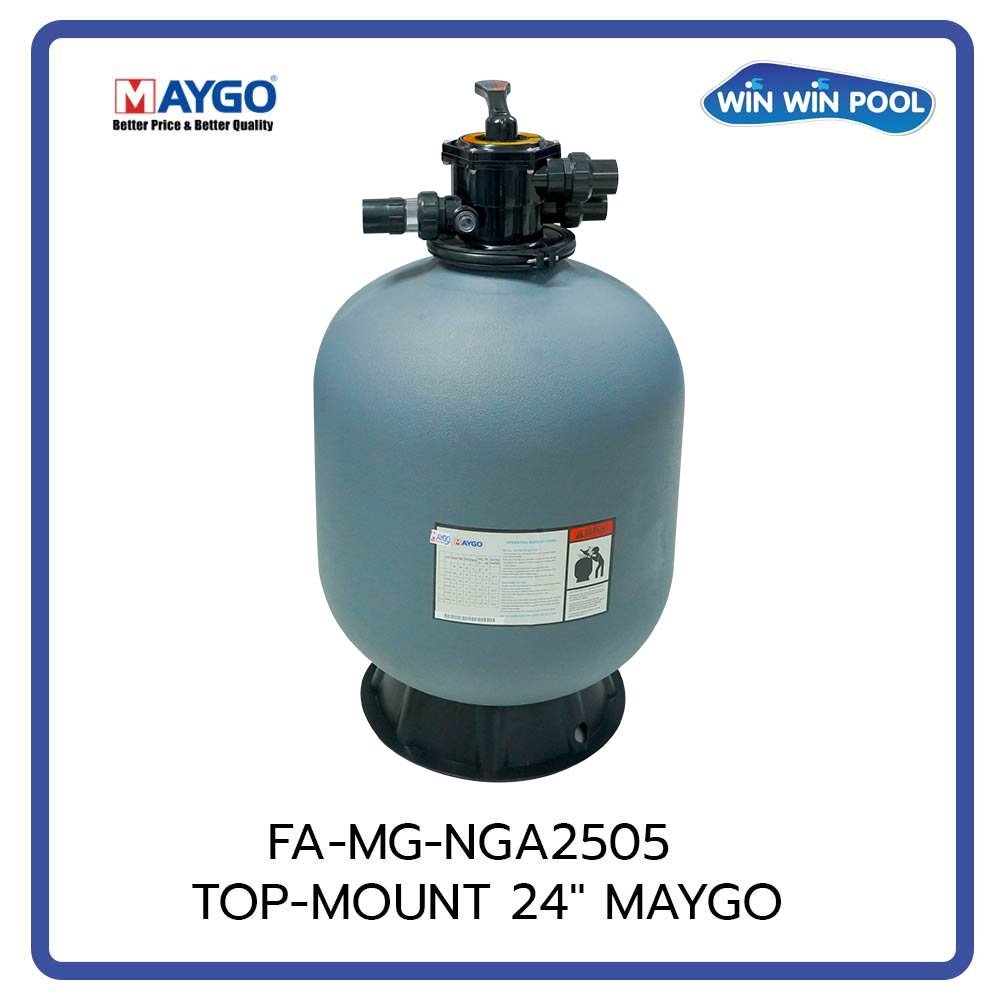

TOP-MOUNT 24" MAYGO

Attribute:

SKU : FA-MG-NGA2505

24" NGA TOP-MOUNT PE SAND FILTER, 1.5" CONN. with sand 3 bag (Update 15/05/2024)

Categories : Pool Filter MAYGO NGA

Brand : MAYGO

Share

NGA Top Mount Fiberglass Sand Filter

for In/Above Ground,Game,Commercial,SPA,Sauna | Fiberglass Top Mounted

  Product Profile
  NGA ejector sand cylinder filter is made of glass fiber and resin with good chemical corrosion resistance,sun protection and UV protection.
   Sand cylinder has a certain degree of elasticity,not easy to crack and broken. The design of water distributor is unique and efticiency of culvert drainage system is high.After fitering the pool water through  the sand tank filter.The effluent turbidity is less than 2 degrees which  has the prionity in the filtration system of swimming pool, SPA, water scape and water park.

Working Condition

  • Max Working Pressure:200kpa/28psi/2.0bar
  • Factory Testing Pressure:300kpa/44psi/3.0bar
  • Max Water Temp:40(104)
  • Size Of Silica Sand:0.5-0.8mm
  • Max Filtration Velocity:50m³/h/㎡ Color can be customized

Features

  • NGA Plastic Top Mounted Sand FiltersFeatures
  • Transparent lid cover allows easy inspection of the sand bed
  • Top diffuser ensures even distribution of water over the top of the sand bed
  • Air relief enables easy release of trapped air during operation of the filter
  • Easy-to-use multiport valve lets you select any of the valve/filter operation with a simple lever-action

     Performance Table
Model
No.
ABCFilter
Area(㎡)
Valve
Connections
Max Flow RateSand(KG)
mminmminmmin
NGA250451020.142016.586033.90.221.5inch50mm180LPM10.8m³/h85
NGA250562024.448018.9107542.30.311.5inch50mm255LPM15.3m³/h145



Dimension
