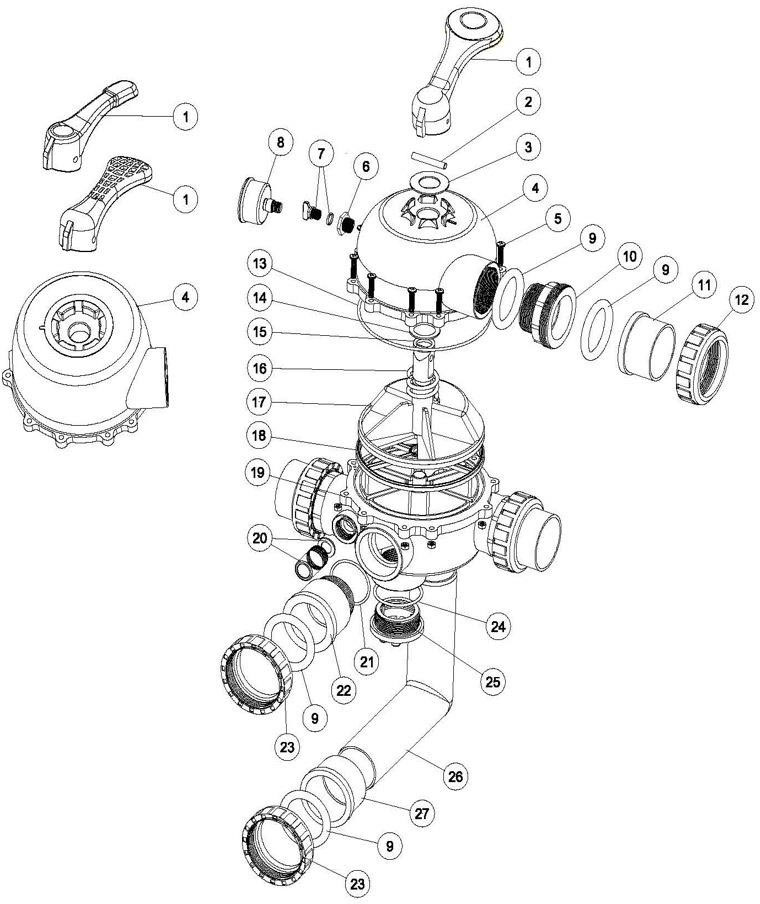

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price 2023 (03/03/2023) | Website | สมาชิก | ||||||||||||||||||
| 1 | 20650510025 | 01013003 | Handle (Big) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 1 | 20650510030 | 01013002 | Handle (Small) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 1 | 20650510035 | 01013001 | Handle (Meshy) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 2 | 20650510040 | 03018008 | Pin for Handle | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 3 | 20650510045 | 01181001 | Washer for Handle | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 4 | 20650510340 | 01013022 | Rotundity Lid (Black) | 1 | 2,819.00 | 1,692.00 | 1,636.00 | ||||||||||||||||||
| 4 | 20650510345 | 01051025 | Rotundity Lid (White) | 1 | 2,819.00 | 1,692.00 | 1,636.00 | ||||||||||||||||||
| 4 | 20650510350 | 01013156 | Squareness Lid (Black) | 1 | 2,819.00 | 1,692.00 | 1,636.00 | ||||||||||||||||||
| 4 | 20650510355 | 01050123 | Squareness Lid (White) | 1 | 2,819.00 | 1,692.00 | 1,636.00 | ||||||||||||||||||
| 5 | 20320511365 | E190144 | M6 x 33B Screw with Nut | 10 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 6 | 20320511305 | E190109 | Connector for Pressure Gauge/Stopper | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 7 | 20650510180 | 89021307 | Drain Plug With O-Ring | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 8 | 20320511020 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,633.00 | 980.00 | 948.00 | ||||||||||||||||||
| 9 | 20320510200 | 02020016 | O-Ring for Connector | 8 | 165.00 | 99.00 | 96.00 | ||||||||||||||||||
| 9 | 20320510201 | 111202472 | O-Ring for Connector - Year2022 | 8 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 10 | 20650510265 | 01051033 | 2.0" Connector (White) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 11 | 20650510260 | 430300989 | 2.0" Union (Imperial/Metric) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 12 | 20650510275 | 430170991 | 2.0" Union Nut (Black) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 12 | 20650510280 | 01051032 | 2.0" Union Nut (White) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 13 | 20650510360 | 02011009 | O-Ring for 2.0" valve Lid | 1 | 414.00 | 249.00 | 241.00 | ||||||||||||||||||
| 14 | 20650510085 | 01181002 | Washer for Spring | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 15 | 20650510095 | 02011022 | O-Ring for Valve Rotor | 2 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 16 | 20650510215 | 03014014 | Spring for Valve | 1 | 2,359.00 | 1,416.00 | 1,369.00 | ||||||||||||||||||
| 17 | 20650510225 | 01021002 | 2.0" Valve Rotor | 1 | 907.00 | 545.00 | 527.00 | ||||||||||||||||||
| 18 | 20650510230 | 02311003 | Spider Gasket | 1 | 1,188.00 | 713.00 | 690.00 | ||||||||||||||||||
| 19 | 2065051365 | 01013026 | Bottom Body (Black) | 1 | 3,989.00 | 2,394.00 | 2,314.00 | ||||||||||||||||||
| 19 | 20650510370 | 01051027 | Bottom Body (White) | 1 | 3,989.00 | 2,394.00 | 2,314.00 | ||||||||||||||||||
| 20 | 20320510245 | 89280104 | Sight Glass with O-Ring | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 21 | 20650510375 | 02020018 | O-Ring for Union Tale | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 22 | 20650510380 | 01013099 | 2.0" Union Tale (Black) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 22 | 20650510385 | 01051035 | 2.0" Union Tale (White) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 23 | 20650510390 | 01013034 | 2.0" Union Nut (Black) | 2 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 23 | 20650510395 | 01051028 | 2.0" Union Nut (White) | 2 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 24 | 20650510400 | 02020017 | O-Ring for Plug | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 25 | 20650510405 | 01013101 | 2.0" Side Mount Valve Plug (Black) | 2 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 25 | 20650510410 | 01051029 | 2.0" Side Mount Valve Plug (White) | 2 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 26 | 20650511055 | 01013148 | 2.0" Elbow Tube 130mm (Black) | 1 | 907.00 | 545.00 | 527.00 | ||||||||||||||||||
| 26 | 20320510201 | 430260994 | 2.0" Elbow Tube 130mm (Black) for MFS series - Year 2022 | 1 | 907.00 | 545.00 | 527.00 | ||||||||||||||||||
| 26 | 20650511060 | 01051257 | 2.0" Elbow Tube 130mm (White) | 1 | 907.00 | 545.00 | 527.00 | ||||||||||||||||||
| 26 | 20650510415 | 01013118 | 2.0" Elbow Tube 220mm (Black) | 1 | 2,095.00 | 1,257.00 | 1,216.00 | ||||||||||||||||||
| 26 | 20650510420 | 01051195 | 2.0" Elbow Tube 220mm (White) | 1 | 2,095.00 | 1,257.00 | 1,216.00 | ||||||||||||||||||
| 26 | 20650511065 | 01013150 | 2.0" Curved Tube 220mm (Black) | 1 | 2,095.00 | 1,257.00 | 1,216.00 | ||||||||||||||||||
| 26 | 20650511070 | 01050114 | 2.0" Curved Tube 220mm (White) | 1 | 2,095.00 | 1,257.00 | 1,216.00 | ||||||||||||||||||
| 27 | 20650510425 | 01171035 | 2.0" Union Adaptor (Metric) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
