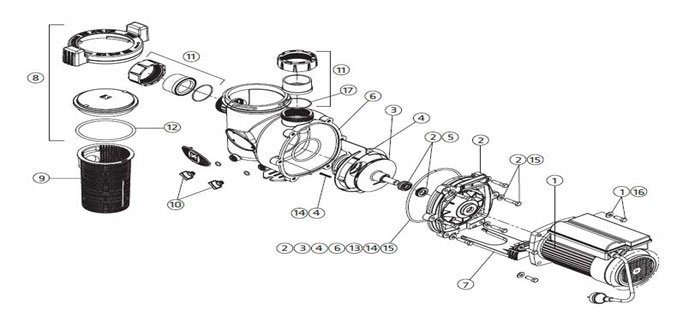

| No. | Part Code | Description | Model | QTY/ Pack | Price2023 (8/03/2023) | Website | Member | ||||||||||||||||||
| 1 | R0736400 | R-KITS, PIONEER, MOTOR & HARDWARE, WFHP 0.75HP | 0.75 | 1 | 20,394.00 | 12,237.00 | 11,829.00 | ||||||||||||||||||
| R0734600 | R-KITS, PIONEER, MOTOR & HARDWARE, WFHP 1.0HP | 1 | 1 | 20,394.00 | 12,237.00 | 11,829.00 | |||||||||||||||||||
| R0734700 | R-KITS, PIONEER, MOTOR & HARDWARE, WFHP 1.5HP | 1.5 | 1 | 20,394.00 | 12,237.00 | 11,829.00 | |||||||||||||||||||
| R0734800 | R-KITS, PIONEER, MOTOR & HARDWARE, WFHP 2.0HP | 2 | 1 | 24,101.00 | 14,461.00 | 13,979.00 | |||||||||||||||||||
| 2 | R0734900 | R-KITS, BACKPLATE, WFHP | All | 1 | 5,278.00 | 3,167.00 | 3,062.00 | ||||||||||||||||||
| 3 | R0735000 | Impeller, WFHP (Impeller, Screw w/O-ring & Backplate O-ring) 0.75HP | 0.75 | 1 | 2,398.00 | 1,439.00 | 1,391.00 | ||||||||||||||||||
| R0735100 | Impeller, WFHP (Impeller, Screw w/O-ring & Backplate O-ring)1.0HP | 1 | 1 | 2,398.00 | 1,439.00 | 1,391.00 | |||||||||||||||||||
| R0735200 | Impeller, WFHP (Impeller, Screw w/O-ring & Backplate O-ring)1.5HP | 1.5 | 1 | 2,398.00 | 1,439.00 | 1,391.00 | |||||||||||||||||||
| R0735300 | Impeller, WFHP (Impeller, Screw w/O-ring & Backplate O-ring)2.0HP | 2 | 1 | 2,398.00 | 1,439.00 | 1,391.00 | |||||||||||||||||||
| 4 | R0735400 | Diffuser, WFHP (Diffuser w/O-ring, Hardware & Backplate O-ring) | All | 1 | 2,398.00 | 1,439.00 | 1,391.00 | ||||||||||||||||||
| 5 | R0735500 | Mechanical Seal, Carbon & Ceramic (1 Set) | All | 1 | 1,866.00 | 1,120.00 | 1,083.00 | ||||||||||||||||||
| 6 | R0735600 | Pump Body, WFHP (Body and Backplate O-ring) | All | 1 | 14,465.00 | 8,679.00 | 8,390.00 | ||||||||||||||||||
| 7 | WA0133001 | Motor Mounting Foot, WFHP | All | 1 | On Request | ||||||||||||||||||||
| 8 | R0736500 | Lid wLocking Ring, WFHP (Lid w/Locking Ring & Lid O-ring) | All | 1 | 4,484.00 | 2,691.00 | 2,601.00 | ||||||||||||||||||
| 9 | R0736600 | Pump Debris Filter Basket, WFHP | All | 1 | 2,304.00 | 1,383.00 | 1,337.00 | ||||||||||||||||||
| 10 | R0735700 | Drain Plug wO-ring, WFHP | All | 1 | 216.00 | 130.00 | 126.00 | ||||||||||||||||||
| 11 | R0735800 | Tail Piece, 0-ring & Union Nut | All | 1 | 1,743.00 | 1,046.00 | 1,011.00 | ||||||||||||||||||
| 12 | R0736700 | Lid 0-ring, WFHP | All | 1 | 654.00 | 393.00 | 380.00 | ||||||||||||||||||
| 13 | 50137300 | Backplate 0-ring, WFHP | All | 1 | On Request | ||||||||||||||||||||
| 14 | 50119000 | Diffuser 0-ring, WFHP | All | 1 | On Request | ||||||||||||||||||||
| 15 | R0736000 | Backplate Hardware, WFHP (Backplate Hardware & Backplate 0-ring) | All | 1 | 1,507.00 | 905.00 | 875.00 | ||||||||||||||||||
| 16 | R0736100 | Motor Hardware Kit | All | 1 | 744.00 | 447.00 | 432.00 | ||||||||||||||||||
