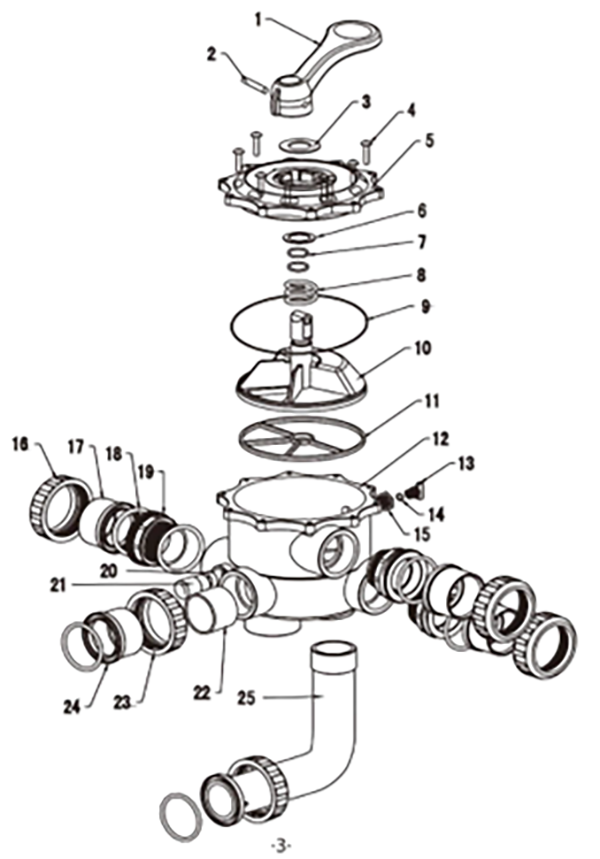

No. | Part No. | Description | Q'ty | Price List | Website |
1 | 01-0201 | handle | 1 | 123.00 | 87.00 |
2 | 01-0104 | screw-handle | 1 | 63.00 | 45.00 |
3 | 01-0102 | washer | 1 | 9.00 | 7.00 |
4 | 01-0103 | bolt | 6 | 165.00 | 116.00 |
5 | 01-0202 | lid assy | 1 | 441.00 | 309.00 |
6 | 01-0106 | washer | 2 | 9.00 | 7.00 |
7 | 01-0108 | o-ring,rotor | 2 | 30.00 | 21.00 |
8 | 01-0107 | spring | 1 | 405.00 | 284.00 |
9 | 01-0203 | o-ring, lid | 1 | 90.00 | 63.00 |
10 | 01-0204 | rotor | 1 | 237.00 | 166.00 |
11 | 01-0205 | gasket,spider | 1 | 183.00 | 129.00 |
12 | 01-0401 | body-diffuser assy | 1 | 1,536.00 | 1,076.00 |
13 | 01-0119 | plug | 1 | 30.00 | 21.00 |
14 | 01-0118 | plug o-ring | 1 |
15 | 01-0117 | nut,plug | 1 |
16 | 01-0210 | nut,bulkhead | 3 | 429.00 | 301.00 |
17 | 01-0209 | adaptor, bulkhead | 3 | 204.00 | 143.00 |
18 | 01-0207 | o-ring,bulkhead | 8 | 219.00 | 154.00 |
19 | 01-0208 | bulkhead fitting | 3 | 318.00 | 223.00 |
20 | 01-0121 | sight glass o-ring | 1 | 12.00 | 9.00 |
21 | 01-0120 | sight glass | 1 | 42.00 | 30.00 |
22 | 01-0402 | PVC pipe | 1 | 21.00 | 15.00 |
23 | 01-0607 | nut,bulkhead | 2 | 126.00 | 89.00 |
24 | 01-0209 | adaptor, bulkhead | 1 | 63.00 | 45.00 |
25 | 01-0403 | elbow pipe | 1 | 207.00 | 145.00 |
