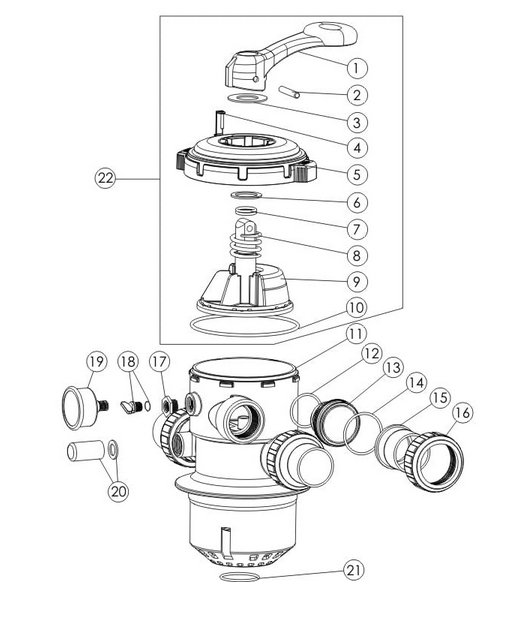

| KEY NO. | CODES | PART NO. | DESCRIPTIONS | PIECE (S) REQUIRED | Price2023 (03/03/2023) | Website | สมาชิก | ||||||||||||||||||
| 1 | 20650510025 | 01013003 | Handle (Big) | 1 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 2 | 20650510040 | 03018008 | Pin for Handle | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 3 | 20650510185 | 01181027 | Washer for Handle | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 4 | 20650510585 | 01181029 | Defend Lock | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 5 | 20650510590 | 01020003 | 1.5" Lid | 1 | 1,912.00 | 1,148.00 | 1,109.00 | ||||||||||||||||||
| 6 | 20650510085 | 01181002 | Washer for Spring | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 7 | 20650510095 | 02011022 | O-Ring for Valve Rotor | 2 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 8 | 20650510090 | 03014001 | Spring for 1.5" Top/Side Mount Valve | 1 | 2,359.00 | 1,416.00 | 1,369.00 | ||||||||||||||||||
| 9 | 20650510595 | 89280701 | 1.5" Valve Rotor with Spider Gasket | 1 | 1,452.00 | 872.00 | 843.00 | ||||||||||||||||||
| 10 | 20650510600 | 02010002 | O-Ring for Lid | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 11 | 20320511400 | E190136 | 1.5" Body with Diffuser | 1 | 4,169.00 | 2,502.00 | 2,419.00 | ||||||||||||||||||
| 12 | 20650510135 | 02020013 | O-Ring for 1.5"Connector | 3 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 13 | 20650510140 | 01013015 | 1.5" Connector (Black) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 13 | 20650510145 | 01051013 | 1.5" Connector (White) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 14 | 20320510195 | 02011003 | O-Ring for 1.5" Adaptor | 3 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 15 | 20650510150 | 01171153 | 1.5" Union (Imperial/Metric) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 16 | 20650510155 | 01013017 | 1.5" Union Nut (Black) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 16 | 20650510160 | 01051014 | 1.5" Union Nut (White) | 3 | 462.00 | 278.00 | 268.00 | ||||||||||||||||||
| 17 | 20320511305 | E190109 | Connector for Pressure Gauge/Stopper | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 18 | 20650510180 | 89021307 | Drain Plug With O-Ring | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 19 | 20320511020 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 | 1,633.00 | 980.00 | 948.00 | ||||||||||||||||||
| 20 | 20320510245 | 89280104 | Sight Glass with O-Ring | 1 | 249.00 | 150.00 | 145.00 | ||||||||||||||||||
| 21 | 20650510125 | 02011001 | O-Ring for Diffuser | 1 | 132.00 | 80.00 | 77.00 | ||||||||||||||||||
| 22 | 20320511405 | 919301022 | MPV07 Upper Part | 1 | 4,715.00 | 2,829.00 | 2,735.00 | ||||||||||||||||||
